Description
Voltage:AC110-240V,50/60Hz
Light source system: China Phoenix wick Lamp 260W,can make 350W also (optional YODN lamp and OSRAM bulb)
Color plate: 13+one white+ colorful rainbow effect + atomization function
Pattern plate: 13 fixed pattern +One White
Focusing system: electric focusing
Linear dimming curve: 0%-100% linear dimming

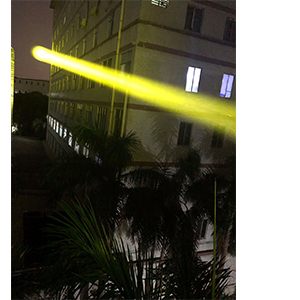

Beam angle: 2°
Lens diameter: 145mm
Dmx Channel:16CH
Frost Function: 6 degree optical focusing,superimposed frost fuction,large area dyeing.
Motor: three phase motor precise positioning.
Control mode: DMX 512, self-propelled, master-slave self-propelled
Prism system: 16+8 prism
Pan:540 degree 16 Bit Title:270 degree 16 Bit, Fast and smooth.
Display: LCD display adapts to different mounting positions
Cooling system: low noise cooling system
IP Level:IP65
Lamp body size: 37*30*68cm Net weight: 23KG
Packing size: 49*41*76.5cm Gross weight: 27KG
Air box one loaded one: 48*43*79cm Weight: 49KG
Air box one loaded two: 93*46*102cm Weight: 85KG
Light source system: China Phoenix wick Lamp 260W,can make 350W also (optional YODN lamp and OSRAM bulb)
Color plate: 13+one white+ colorful rainbow effect + atomization function
Pattern plate: 13 fixed pattern +One White
Focusing system: electric focusing
Linear dimming curve: 0%-100% linear dimming
Beam angle: 2°
Lens diameter: 145mm
Dmx Channel:16CH
Frost Function: 6 degree optical focusing,superimposed frost fuction,large area dyeing.
Motor: three phase motor precise positioning.
Control mode: DMX 512, self-propelled, master-slave self-propelled
Prism system: 16+8 prism
Pan:540 degree 16 Bit Title:270 degree 16 Bit, Fast and smooth.
Display: LCD display adapts to different mounting positions
Cooling system: low noise cooling system
IP Level:IP65
Lamp body size: 37*30*68cm Net weight: 23KG
Packing size: 49*41*76.5cm Gross weight: 27KG
Air box one loaded one: 48*43*79cm Weight: 49KG
Air box one loaded two: 93*46*102cm Weight: 85KG
